Dually-targeted liposomes curb triple-negative breast cancer, metastases in mice

dually targeted liposomes concept
(Image: AdobeStock)

Some 15 to 20 percent of all breast cancers are triple-negative, meaning they lack receptors for estrogen, progesterone and human epidermal growth factor type 2. They have the worst prognosis of all breast cancers and very limited treatment options. Finding a treatment that distinguishes between cancer cells and normal cells has been especially challenging.

A novel precision medicine strategy described today in Science Advancesoffers an intriguing ray of hope. Researchers at Boston Children’s Hospital, with bioengineers at the City College of New York (CCNY), showed that dually-targeted, antibody-guided nanoparticles, loaded with an existing chemotherapy drug, markedly improved tumor targeting, decreased tumor and metastatic growth and dramatically improved survival in a mouse model of triple-negative breast cancer. There were no observable side effects.

Customized targeting

Led by Peng Guo, PhD and Jiang Yang, PhD in the Moses Laboratory in Boston Children’s Vascular Biology Program, the researchers first meticulously screened African American and Caucasian triple-negative breast cancer cell lines, looking for any of 68 common cancer antigens. They identified 16 potential targets common to all the tested cancer cell lines. After further evaluation chose the two strongest hits: surface receptors called ICAM1 and EGFR that were abundant on the cancer cells but rare on noncancerous cells, as shown here (cell nuclei are stained blue):

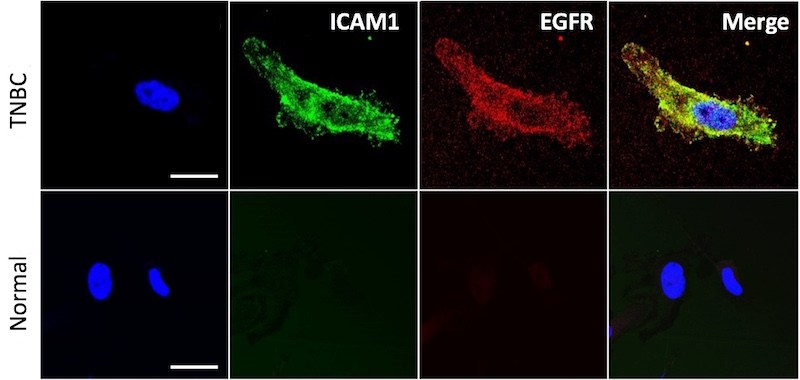

triple-negative breast cancer cells stained for ICAM1 and EGFR receptors
(CREDIT: GUO ET AL., SCIENCE ADVANCES, DOI: 10.1126/sciadv.aav5010)

Next, Guo and Yang determined the relative amounts and locations of each receptor on the cancer cells. The ratio of ICAM1 to EGFR receptors, which were found in close proximity to each other, ranged from 1.5:1 to 4.2:1 among the cell lines. The team engineered customized liposomes with antibodies targeting ICAM1 and EGFR in the corresponding ratio, a technique called complementary targeting.

“If we want to selectively deliver drugs into tumors, using the synergy of two targets is significantly better than using a single target,” says Marsha Moses, PhD, who directs the Vascular Biology Program. “Knowing the molecular ratios and organization of the two targets is key to successful dual targeting.”

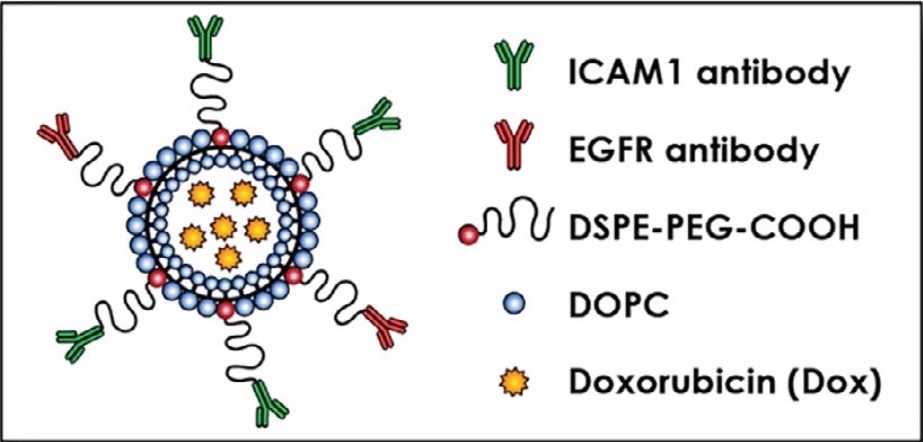

liposome schematic

As shown above, the engineered dual complementary liposomes, or DCLs, also contained two fatty lipid molecules, DOPC and DSPE-PEG-COOH, and were loaded with doxorubicin, an FDA-approved breast cancer drug. Using microscopy, Guo, Yang and colleagues verified that the liposomes homed specifically to breast cancer cells and bound to their targets.

“We found that much greater amounts of the chemotherapy drug were delivered specifically to the tumor cells,” says Guo. “This met our goal of reducing the total amount of drug needed to treat the tumor, potentially reducing adverse effects from chemotherapy in patients with triple-negative breast cancer.”

Curbing tumors and metastases

Tested in mice, the DCLs inhibited the growth of triple-negative breast tumors by about 70 percent when compared with a sham treatment and about 40 percent compared with free doxorubicin (not packaged in liposomes). They also outperformed liposomes targeting either ICAM or EGFR alone.

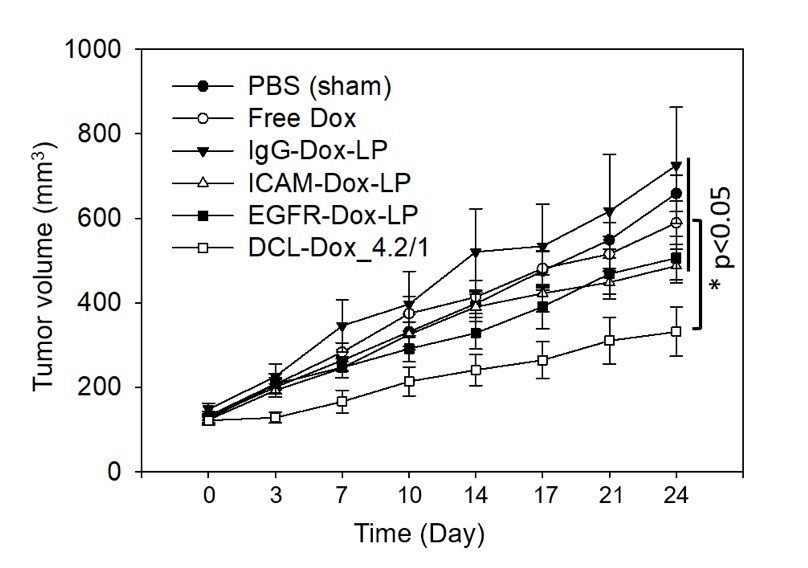

tumor volume triple negative breast cancer
(CREDIT: GUO ET AL., SCIENCE ADVANCES, DOI: 10.1126/sciadv.aav5010)

Importantly, the liposomes also recognized and reduced lung metastases, a major cause of death in triple-negative breast cancer. Although the mice were of a type prone to lung metastases, none of those treated with the dually-targeted liposomes developed metastases, versus two of eight mice treated with liposomes targeting ICAM1 alone and six of eight mice treated with liposomes targeting EGFR alone. Five of eight mice treated with free doxorubicin also developed lung metastases, as did all eight untreated controls.

Living longer, without toxicity

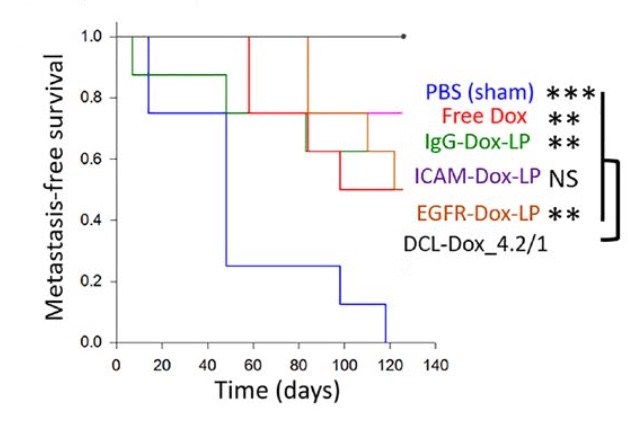

Perhaps the most dramatic difference was in survival. This Kaplan-Meier curve shows metastasis-free survival among the different treatments. As indicated by the flat black line at the top, mice treated with DCLs survived the longest, without disease progression.

Kaplan-Meier curve triple-negative breast cancer
(CREDIT: GUO ET AL., SCIENCE ADVANCES, DOI: 10.1126/sciadv.aav5010)

The researchers measured “off target” toxicity of the DCLs at different doses by checking the animals’ organs and blood chemistry. They found no signs of liver or kidney toxicity, even at the highest doses.

“A central problem in cancer therapy has been how to engineer therapeutics that distinguish cancer cells from normal cells, in order to minimize side effects,” says Guo. “Using a rational approach to select a combination of targets as a ‘barcode’ to recognize cancer cells is a strategy that has not yet been applied to triple-negative breast cancer.”

Teeing up clinical development

The researchers have filed for patents on their technologies, which they say can be used as a platform to create customized treatments for other cancers and diseases. They are in talks with companies to move the strategy into clinical development, buoyed by the fact that elements of the liposome-doxorubicin formulation and the ICAM1 and EGFR targets are already FDA-approved.

“We’re very serious about working to get this to the clinic,” says Moses. “It is part of a larger portfolio of targeted therapies that our lab is developing for difficult-to-treat cancers.”

Guo and Yang were co-first authors on the paper. Moses and Debra T. Auguste of CCNY, now at Northeastern University, were co-senior authors. Other coauthors were Daxing Liu of CCNY (now also at Northeastern) and Lan Huang, Gillian Fell and Jing Huang of Boston Children’s Vascular Biology Program. The study was funded by the National Institutes of Health and the Breast Cancer Research Foundation.

For more information on licensing and collaboration opportunities with this technology, please email Adrienne Wong of the Technology and Innovation Development Office.
